1 inch 25mm wholesale safety tow cargo loading ratchet tie down straps

Ratchet Tie Down are consisted of strap, ratchet and hook.
1.Standard:EN12195-2 ASME B30.9
2.Safety factor:2:1,3:1

Ratchet is a kind of equipment what is convenient to operate by hand, and the best brawn is 500N.

1.Material: made of 100% polyester, nylon

2.Working temperature: -40°C-100°C

3.Color:Color Code
4.Length:As required

5.Loose and length: As required

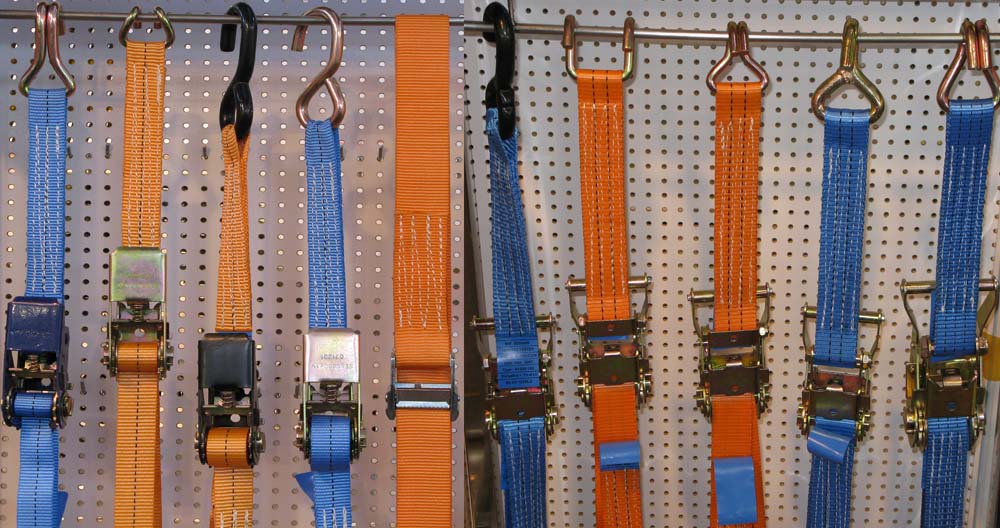

Detailed product

Ratchet Tie Down are used for fixation cargo while transporting, shifting or moving, storage. Customers could choose the end fitting according to their requires, and the kinds of end fitting with metal including Double ”J” Hook, Flat Hook, “S” Hook, Claw Hook, Ring, Buckle and so on.

RTD Double "J" Hook	Stock.No	M.B.S/kg	Webbing Width/mm	Webbing B.L.(kg)	Lashing Capacity(kg)
	RTD25-040	800	25	1000	400
	RTD25-050	1000	25	1200	500
	RTD35-075	1500	35	1850	750
	RTD35-100	2000	35	2500	1000
	RTD35-150	3000	35	3750	1500
	RTD50-200	4000	50	5000	2000
	RTD50-250	5000	50	6250	2500
	RTD75-350	7000	75	8750	3500
	RTD100-500	10000	100	12500	5000

RTC Claw Hook	Stock.No	M.B.S/kg	Webbing Width/mm	Webbing B.L.(kg)	Lashing Capacity(kg)
	RTC35-075	1500	35mm	1850	750
	RTC35-100	2000	35mm	2500	1000
	RTC35-150	3000	35mm	3750	1500
	RTC50-200	4000	50mm	5000	2000
	RTC50-250	5000	50mm	6250	2500
	RTC75-350	7000	75mm	8750	3500
	RTC100-500	10000	100mm	12500	5000

Direction to use:

Only use undamaged ratchet lashing,the lable indicating the capacity must clearly legible.

Ratchet lashing should not be used as a load lifting gear.

Don't put the loads on the ratchet lashing,which could cause damage.

Ratchet lashing must not be overload and not to be used for any lifting puiposes.
